Publish information：Liaoning Kaihua Photoelectric Technology Co., Ltd. Release time：2017-8-11 21:42:14
Application：
It is suitable for lighting on mobile vibration equipment such as drilling rigs, shovels, loaders and unloaders.

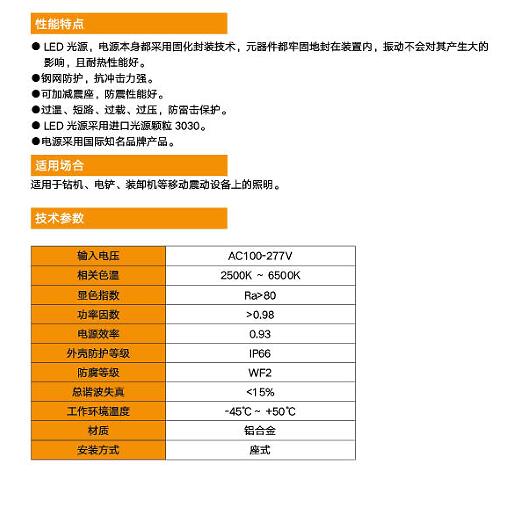

Performance characteristics：
●Dual shock absorber module is used to reduce the impulse of the car body moving to the lamp. Extend the service life of lamps and lanterns. At the same time, the LED light source and power supply are solidified packaging technology, and the components are firmly sealed in the device, so the vibration will not have a great impact on it.
●Overtemperature, short circuit, overload, overvoltage, lightning protection.
●LED light source adopts imported light source particle 3030.
●The power supply adopts internationally renowned brand products.
Technical parameter：
|
Input voltage
|
AC85～305V / DC24V、36V 50～60Hz
|
|
Correlated color temperature
|
2500K～6500K
|
|
Chromogenic index
|
Ra>80
|
|
Power factor
|
>0.98
|
|
Power efficiency
|
0.93
|
|
Shell Protection Level
|
IP66
|
|
Anticorrosion grade
|
WF2
|
|
Total harmonic distortion
|
<15%
|
|
Working environment temperature
|
-45℃～+50℃
|
|
Texture of material
|
Aluminium alloy
|
|
Outline size
|
540×470×135mm
|
|
Weight
|
7.9 Kg
|
|
Installation mode
|
Seat type
|
Light distribution curve：
Quality assurance：
This product is strictly in accordance with ISO 9001:2015 international quality management system standards for quality control, production in accordance with 3C certification standards, fully meet the design requirements, the product is guaranteed for five years, from the date of purchase within five years, the company is responsible for the normal use of any failure free maintenance.
Adaptable light source：
|
Lamps and lanterns model
|
Light source
|
Power(W)
|
Luminous flux（Lm）
|
Average life span(year）
|
|
KHZF735-L150-ZF-SF-220VAC
|
LED
|
150
|
19500
|
43800
|
|
KHZF735-L200-ZF-SF-220VAC
|
LED
|
200
|
26000
|
43800
|

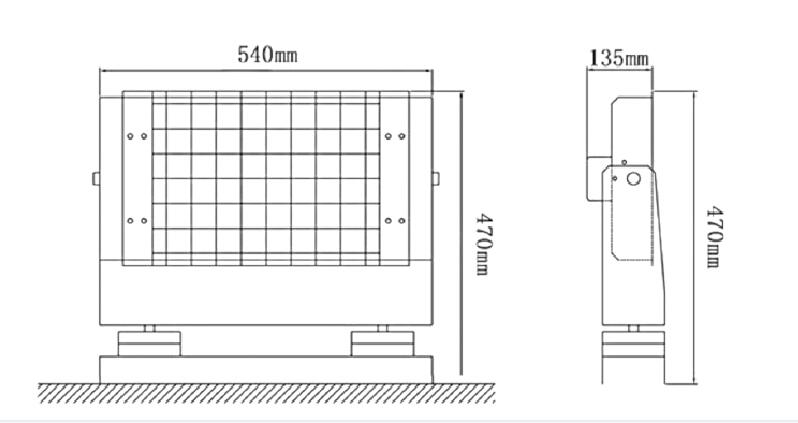

Product shape size and installation method：
